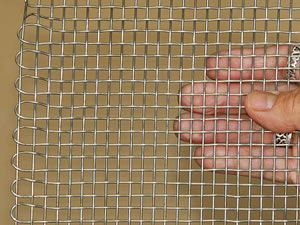

Stainless steel is selected for their wear-resisting, heat-resisting, acid-resisting and corrosion resisting characteristics. Many different grades of stainless are used in wire cloth. T304 is the most common, but other are used in specific applications to take advantage of each grade’s unique properties. The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.

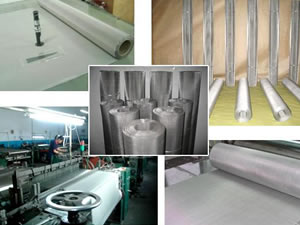

Our stainless steel wire mesh products are generally made of stainless steel Type 302, 304, 304L, 316, 316L, 321 and 430 etc. We produce wire cloth in all kinds of forms. The weaving is determined according to our customers’ specific requirements, such as the material, the wire diameter, the size of the mesh , width and length.

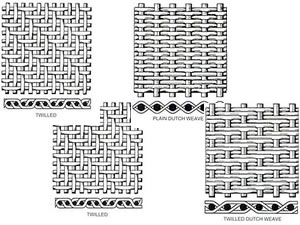

Popular Weaving Types We Use for Wire Mesh Cloth: Plain Weave, Twilled Weave, Dutch Plain Weave, Dutch Twilled Weave, Reverse Weave, Five Heddle Weave.
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot | ||
Inch | MM | Inch | MM | |||
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
