Material: Black wire, Stainless Steel wire , Galvanized wire etc.

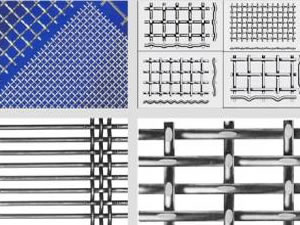

Weaving patterns: weaving after crimping. Two-way across wave bending, locked bending, flat-topped curved, two-way bending, one-way compartment wave bending
Function: stability, consistency and smooth surface
Application: It is mainly used in industries for heavy screening and sieving. Such as Barbecue Mesh, Machinery Accessories, Vibration sieves etc.
We can produce according to customers requirements.
| Specification | ||||
| Wire diameter （mm） | Aperture（mm） | Wire diameter（mm） | Aperture（mm） | |
| 22.0 | 200 | 4.0 | 15 | |
| 20.0 | 180 | 3.2 | 30 | |
| 16.0 | 150 | 3.0 | 30 | |
| 16.0 | 120 | 3.2 | 25 | |
| 12.0 | 100 | 3.0 | 25 | |
| 12.0 | 90 | 2.6 | 30 | |
| 12.0 | 80 | 2.5 | 30 | |
| 12.0 | 75 | 2.6 | 25 | |
| 12.0 | 70 | 2.5 | 25 | |
| 10.0 | 60 | 2.6 | 20 | |
| 10.0 | 50 | 2.5 | 20 | |
| 9.0 | 45 | 2.0 | 25 | |
| 8.0 | 40 | 1.9 | 25 | |
| 7.5 | 38 | 2.0 | 20 | |
| 7.0 | 37.5 | 1.9 | 20 | |
| 7.0 | 35 | 2.0 | 18 | |
| 7.0 | 32.5 | 1.9 | 18 | |
| 6.5 | 32 | 2.0 | 15 | |
| 6.0 | 30 | 1.9 | 15 | |
| 6.0 | 27.5 | 2.0 | 12 | |
| 6.0 | 25 | 1.9 | 12 | |
| 6.0 | 20 | 2.0 | 10 | |
| 5.0 | 25 | 1.9 | 10 | |
| 5.0 | 22.5 | 1.6 | 15 | |
| 5.0 | 20 | 1.5 | 15 | |
| 4.5 | 22 | 1.6 | 12 | |
| 4.5 | 17.5 | 1.5 | 12 | |
| 4.5 | 15 | 1.6 | 10 | |
| 4.0 | 20 | 1.5 | 10 | |
