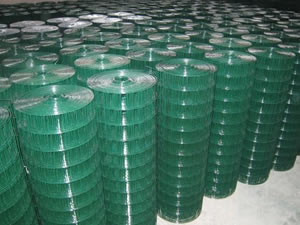

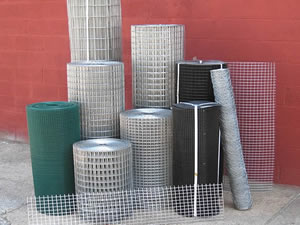

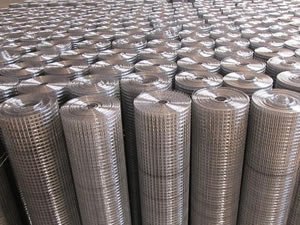

Welded mesh offer high stability, as the longitudinal and cross wires are welded at the crossing points. Thanks to the variable mesh size and wire diameter, it is possible to use welded mesh in a wide range of industrial sectors.
Materials: mild steel wire, stainless steel wire, galvanized wire.
Finish: electric galvanizing, hot-dip galvanizing, or pvc-coated.
Application: welded wire mesh with excellent corrosion resistance and oxidation resistance extensively used fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
Mesh Size | Wire Gauge Diameter | ||
In MM | In Inch | BWG No. | MM |
6.4mm | 1/4Inch | BWG24-22 | 0.56mm- 0.71mm |
9.5mm | 3/8Inch | BWG23-19 | 0.64mm - 1.07mm |
12.7mm | 1/2Inch | BWG22-16 | 0.71mm - 1.65mm |
19.1mm | 3/4Inch | BWG21-16 | 0.81mm - 1.65mm |
25.4x 12.7mm | 1 x 1/2Inch | BWG21-16 | 0.81mm - 1.65mm |
25.4mm | 1Inch | BWG21-14 | 0.81mm - 2.11mm |
38.1mm | 1 1/2Inch | BWG19-14 | 1.07mm - 2.11mm |
25.4 x 50.8mm | 1 x 2Inch | BWG17-14 | 1.47mm - 2.11mm |
50.8mm | 2Inch | BWG16-12 | 1.65mm - 2.77mm |
